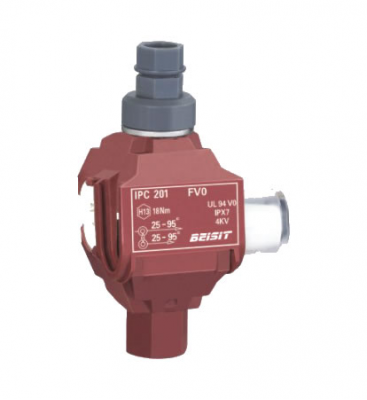

INSULATION PIERCING CONNECTORS IPC201FVO

IPC 201FVO specification:

• Main line section(mm2): 25-95
• Branch section(mm2): 25-95
• Nominal current(A): 399
• Bolt Quantity: 1xM8
• (Nm): 13
• Piercing depth(mm): F1318


IPC 201FVO is a piercing connector for external usage. For Main cables 25-95 and Tap cables 25-95. Maximum load: 399A

Normal size connector for special applications.

Piercing connector (IPCs) provide a fast, convenient and reliable method of connecting overhead low voltage lines (mains to tap or mains to other mains). All common types of conductors can be interconnected, including insulated aluminum or copper one. The connectors have been tested and are approved for use by different power distribution utilities.
