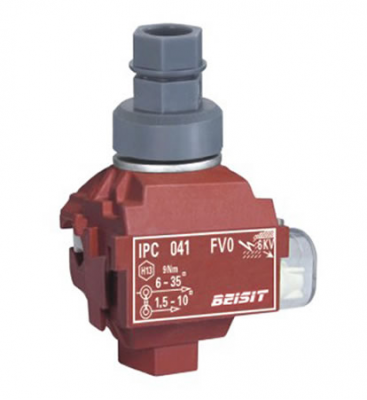

INSULATION PIERCING CONNECTORS IPC041FVO
![INSULATION PIERCING CONNECTORS IPC041FVO](http://www.piercingconnectors.eu/_res/_thumbs/367x400/products/insulation-piercing-connectors-ipc-041fvo.1381835967.jpg)
IPC 151FVO specification:
IPC 151FVO - Piercing Connector for external usage. For Main cables 6-35 and Tap cables 1.5-10. Maximum load: 77A
Normal size connector for special applications.
Piercing connector (IPCs) provide a fast, convenient and reliable method of connecting overhead low voltage lines (mains to tap or mains to other mains). All common types of conductors can be interconnected, including insulated aluminum or copper one. The connectors have been tested and are approved for use by different power distribution utilities.
- Main line section(mm2): 6-35
- Branch section(mm2): 1.5-10
- Nominal current(A): 77
- Bolt Quantity: 1xM8
- (Nm): 13
- Piercing depth(mm): F1309
IPC 151FVO - Piercing Connector for external usage. For Main cables 6-35 and Tap cables 1.5-10. Maximum load: 77A
Normal size connector for special applications.
Piercing connector (IPCs) provide a fast, convenient and reliable method of connecting overhead low voltage lines (mains to tap or mains to other mains). All common types of conductors can be interconnected, including insulated aluminum or copper one. The connectors have been tested and are approved for use by different power distribution utilities.
